How to choose your CIPP caliber for pipe lining operations? Pro Guide 2024

Pipe lining is a modern approach for repairing sewer networks without requiring their complete replacement.

This technique involves inserting a flexible resin-impregnated liner into the old pipe, then consolidating it by heating or UV exposure. It proves effective for fixing various issues such as cracks, leaks, and other structural damages, thus avoiding costly excavation work.

The success of this method relies on the proper choice of caliber CIPP, determined by the diameter and thickness of the liner, which must precisely match the dimensions of the defective pipe. A wrong caliber choice can compromise the quality, efficiency, and safety of the repair.

This guide aims to help you choose the ideal caliber CIPP, considering essential criteria. We will also cover the advantages of light duty caliber CIPP, despite its limited availability.

To complete your information, we offer you an overview on how to access a PDF catalog to stay updated on pipe lining advancements.

https://www.calameo.com/read/007625540cbbd3eb97bf5

If you are ready to optimize the durability of your pipes with a proven method, continue reading to discover how.

Understanding the fundamentals of Caliber CIPP

To select the right caliber CIPP for your pipe lining project, it is crucial to understand the meaning of this term and how it operates. We will introduce you to the basic principles of caliber CIPP, explore the varieties available on the market, and discuss the benefits it offers compared to other pipe renovation techniques.

What is Caliber CIPP and how does it work?

Caliber CIPP, standing for Cured-In-Place Pipe, refers to a pipe repair method. This technique involves inserting a flexible resin-coated liner into the existing pipe, which is then cured by applying heat or exposure to ultraviolet rays. This process creates a new pipe inside the old one without requiring replacement or excavation.

The process is simple: the liner is inserted into the defective pipe via an inversion device or a winch, then inflated with air or water under pressure to conform to the shape of the pipe. The resin is cured by heat or UV to form the new pipe before removing the inflation device and inspecting the completed lining.

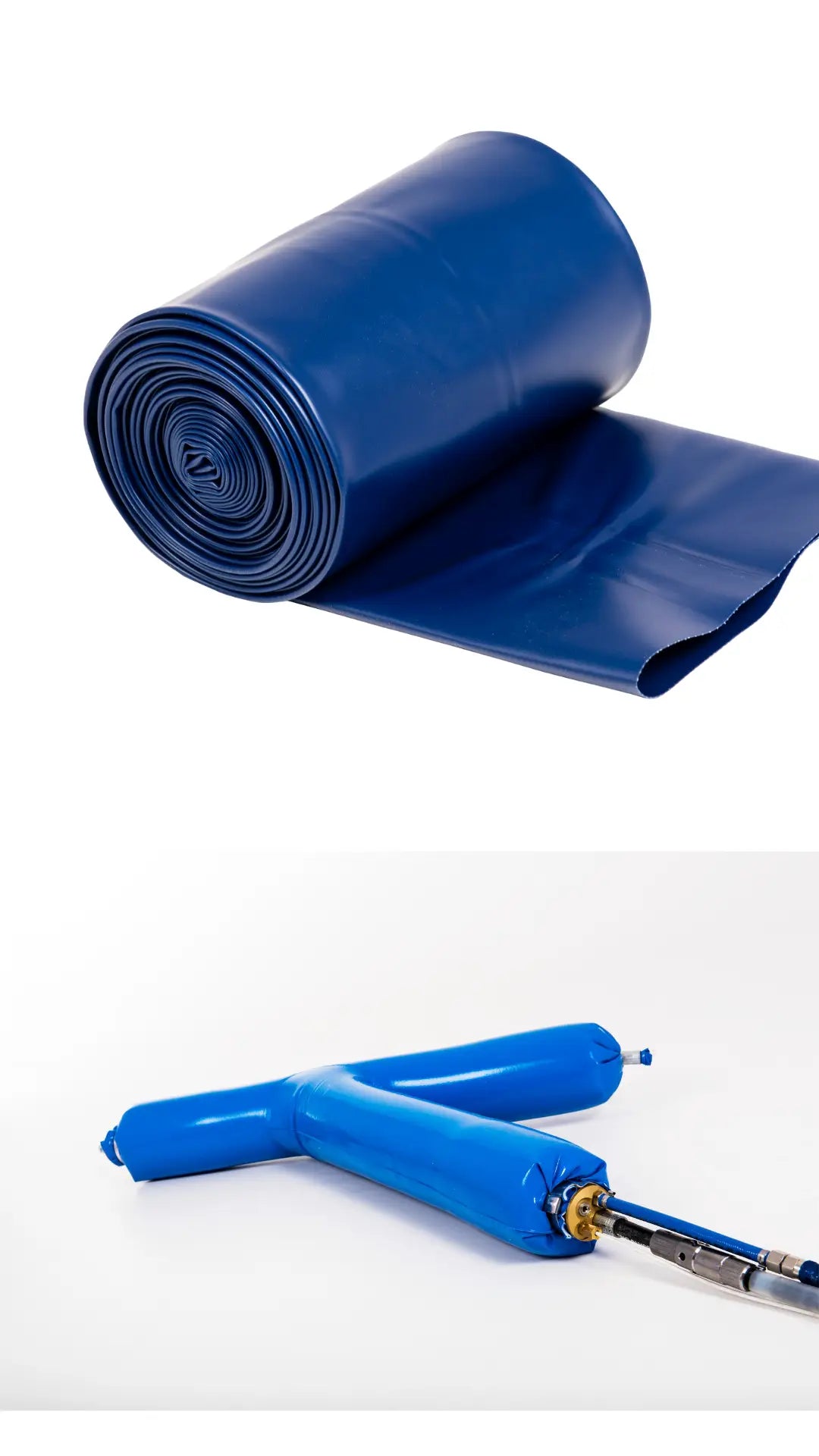

The different types of Caliber CIPP available on the market

The market offers various versions of caliber CIPP, differentiated by their diameter, thickness, type of resin, and curing process. Here are the main types of caliber CIPP you will find:

• The standard CIPP caliber: this is the most common model, suitable for pipes from 80 to 1200 mm in diameter. It is made from a liner of polyester or fiberglass with epoxy or polyester resin, cured by heating with water or steam.
• The light duty CIPP caliber: a lighter variant of the standard caliber, offering excellent value for money for pipes with diameters from 100 to 600 mm, and subjected to light or moderate mechanical constraints. Its liner, similar in materials, is thinner to reduce costs and curing time.
• The UV CIPP caliber: this type uses ultraviolet rays for curing. The liner, made of polyester or fiberglass and impregnated with epoxy or vinylester resin, reacts to UV. Suitable for pipes with diameters from 150 to 1600 mm, it is perfectly suited for situations with strong mechanical constraints or harsh environments.

Advantages of pipe lining with the CIPP Caliber

Opting for pipe lining via the CIPP caliber offers multiple advantages over traditional methods such as complete replacement, sleeving, or partial lining. The main benefits include:

• Pipe repair without excavation or replacement, thus minimizing costs, nuisances, risks, and project delays.
• Restoration of the tightness, strength, and hydraulic capacity of pipes, eliminating leaks, infiltrations, blockages, or deformations.
• Flexibility allowing adaptation to the shape and diameter of pipes, including curves, section variations, or branches.
• A reduced environmental impact, thanks to lower consumption of water, energy, and materials, and the prevention of soil and water pollution.
• An extension of the lifespan of pipes, protecting them against corrosion, abrasion, roots, or chemical attacks.

In summary, the CIPP caliber is an ideal solution for the rapid, economical, and durable rehabilitation of your pipes. So how to choose the CIPP caliber that meets your requirements? This is what we will address in the next section.

Key factors to consider when choosing the right CIPP Caliber

You are now familiar with the principles of the CIPP caliber and the various types available on the market. The question arises: how to select the most suitable CIPP caliber for your pipe lining project?

What criteria should guide your choice? In this section, we will explore the essential factors to consider when identifying the ideal CIPP caliber, such as the condition and diameter of the pipes, the compatibility of materials with the transported fluids, geographical and environmental constraints, as well as budgetary considerations and return on investment.

Analysis of the condition and diameter of the pipelines

The first criterion to evaluate when selecting the appropriate CIPP liner concerns the condition and diameter of the pipelines to be renovated. It is crucial to ensure the compatibility of the CIPP liner with the dimensions, shape, and condition of the pipelines. For this, a thorough inspection of the pipelines is necessary, using cameras or probes, to determine their condition, diameter, length, curvature, section, connections, and to identify any defects (cracks, leaks, blockages, etc.).

This analysis allows choosing a suitable CIPP liner based on its thickness, strength, flexibility, and ability to conform to pipeline irregularities.

Material compatibility with transported fluids

The compatibility of the CIPP liner materials with the fluids transported by the pipelines is another critical factor. It is essential to verify the resistance of the selected material to the various agents present in the fluids, whether chemical, biological, or physical (acids, bases, solvents, bacteria, hydrocarbons, temperature and pressure variations, etc.).

It is therefore important to understand the nature of the fluids in the pipelines and select the CIPP liner based on the type of liner, resin, and curing method used. For example, the UV CIPP liner offers better chemical resistance compared to the standard CIPP liner, while the CIPP liner adapted for light loads is more suitable for fluids at low temperature and pressure.

Geographical and environmental constraints

The geographical and environmental constraints of the intervention site represent the third criterion to consider. It is vital to ensure that the selected CIPP liner is suitable for the terrain conditions, climate, regulations, and site accessibility. This involves taking into account potential constraints such as slope, altitude, rainfall, temperature variations, quality standards, necessary permits, as well as the impact on traffic and parking.

This evaluation can influence the choice of CIPP liner based on its ease of transport, storage, installation, and inspection.

Budget and return on investment

The fourth and final criterion is the budget and return on investment of your pipeline lining project. It is essential to choose a CIPP liner offering satisfactory profitability, taking into account the associated costs (purchase, transport, storage, installation, inspection, maintenance) as well as the expected benefits, such as reduced expenses, nuisances, risks, improved quality, performance, longevity of the pipelines, and reduced environmental impact.

Comparing these elements allows selecting the CIPP liner offering the best value for money, considering the type of liner, resin, and curing process.

You now have the necessary information to wisely choose the CIPP liner suited to your pipeline lining project, taking into account the main factors outlined. Next, we will discuss the best practices and methodologies for the optimal installation of the CIPP liner.

Installation methodology and best practices

After choosing the CIPP liner suited to your pipeline lining project, you are probably wondering how to proceed with its installation. What are the essential steps to follow for a successful setup?

This section will detail the steps not to be overlooked before installation, the proper choice of equipment, preparing your team, as well as monitoring and maintenance actions to be performed after installation.

Preliminary steps not to be overlooked

Before installing the CIPP liner, several preliminary steps are crucial to ensure the quality and safety of the process. Here are these key steps:

• Site preparation: Ensure safety by delimiting the intervention perimeter, installing necessary signage, organizing storage and work areas, and planning access for vehicles and pedestrians.
• Setting up the bypass system: A pumping and piping system must be installed to divert wastewater and prevent any overflow or contamination during installation.
• Cleaning and inspecting the pipeline: Use high-pressure water jets, rotary brushes, or mechanical cutters to clean the pipeline. Inspect it with a video camera to verify its condition and characteristics.
• Cutting and impregnating the liner: Cut the liner to the pipeline's dimensions and impregnate it with resin following the manufacturer's recommendations. Check for the absence of bubbles or dry spots to ensure optimal quality.

Equipment selection and team training

For an effective installation of the CIPP liner, it is essential to select the appropriate equipment and properly train your team.

The necessary equipment and training include:

• Inversion device: Choose between a compressed air or pressurized water device according to your project's specifics to properly insert the liner into the pipeline.
• Hardening device: Depending on the type of resin and site conditions, choose a heating or UV exposure device to effectively cure the resin.
• Control device: Use manual or automatic equipment to monitor installation quality by measuring pressure, temperature, and other important variables.
• Team training: Ensure your team is trained both theoretically and practically, focusing on safety techniques and procedures specific to Calibre CIPP. A competency certification must be issued by an accredited organization.

Post-installation monitoring and maintenance

After installation, monitoring and maintenance tasks are crucial to ensure the proper functioning and durability of the lining.

• Cutting connections: Restore the connection of branches by cutting openings in the hardened liner, while avoiding debris.
• Quality control: Conduct tests and inspections according to applicable standards to verify the tightness, resistance, and other quality criteria of the Calibre CIPP.
• Restart: Remove the bypass system and inform users to resume wastewater flow, while cleaning the site and restoring the nearby environment.
• Preventive maintenance: Extend the lifespan of the Calibre CIPP with cleaning, descaling, and periodic inspections to prevent any anomalies.

With this methodology and these practices, you are well equipped for an optimal Calibre CIPP installation. Stay informed about innovations and be sure to follow recommendations to fully benefit from this technology.

Conclusion

To conclude this article, we have explored together the importance of choosing the right Calibre CIPP for pipe lining projects. The key elements we examined include:

• An introduction to the fundamentals of Calibre CIPP and the variety of types offered on the market.
• The essential criteria to consider when choosing the Calibre CIPP suited to your project.
• The methodology and best practices to follow for a successful installation.
• Ways to obtain a PDF catalog to stay informed about the specific advantages of Calibre CIPP light duty.

We hope you found this article informative and that it shed light on the crucial aspects of Calibre CIPP. If you are ready to start your pipe lining project with Calibre CIPP, do not hesitate to contact us.

We will provide you with a free, customized quote tailored to your specific requirements and budget. Our commitment is to support you at every stage of the project, ensuring access to top-quality equipment and materials, as well as a dedicated team of experts.

Don't wait any longer, contact us today to benefit from the unparalleled expertise and performance of Calibre CIPP!
